FEATURING
‧
TEXTUR3D TM 3-dimensional prints for a unique look and feel along with standard flat prints
‧
Produces ADA-compliant / Braille signage(patent pending)
‧
Max volume production with enhanced X-axis motion for up to a 20% increase in throughput over previous models*
‧
Absolute positioning accuracy and repeatability of ±0.0015” (.038mm) when utilizing the heavy-duty Y-axis module
‧
ACS-UV print head anti-cure system
‧
Precision Dot Control TM provides industry-leading print quality
‧
Inline printing-print any combination of two or three of RIP 9’s groups of white, color and clear print head channels simultaneously,inline in a single pass
‧
Bulk Ink System TM - Unlike single-use cartridges, this system allows for 100% utilization of available ink
‧
White UV ink creates a very opaque image, allowing you to print vibrant colors onto virtually any colored or transparent substrate
‧
UV LED inks offer outstanding solvent and abrasion durability > 6-color ink set, including clear snd white
‧
Made in the USA - distributed globally
‧
OPtimized resolution of up to 5760 dpi
‧
Direct Drive Stepper Motor contrlo>Optional heavy-duty module allows for absolute positioning accuracy and repeatabillity of ±0.0015”(.038mm)
‧
LED automatic head height adjustment
‧
Economical head replacement cost
‧
Adjustable power output for UV LED lamp
PRINTABLE AREA
10”X24”(254mmX610mm)

INDUSTRIAL STRENGTH CAPABILTIES
Print on substrates from 0”to 15”(381mm) thick, weighing up to 30ibs. (13.6 kg)

PRINT ON
Wood, metals, ceramic tiles, plastic, glass, industrial parts, promotional products and so much more!

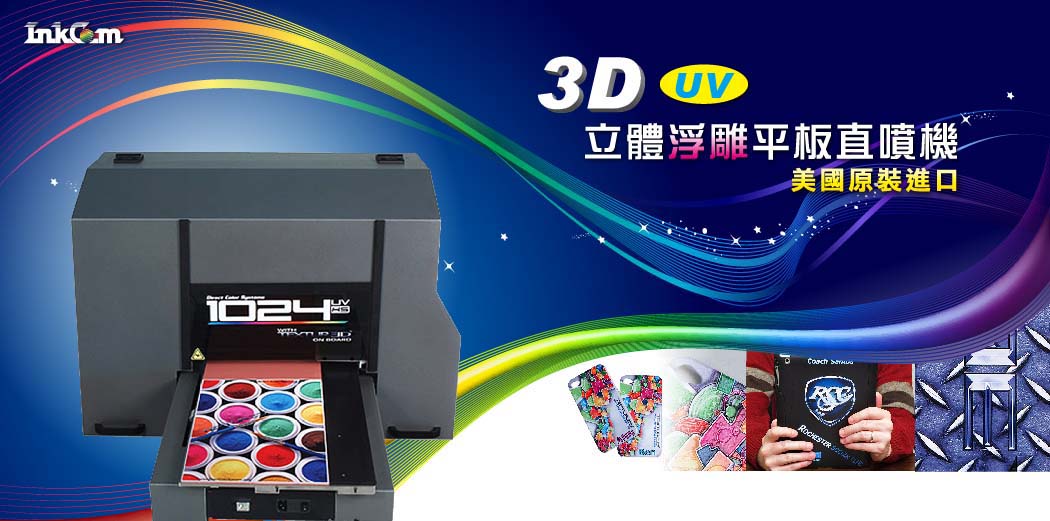

Direct Jet 1024UVMVP Specifications

 Imaging Process
 On-demand inkjet(Micro Piezo) 8-channel head with 180 nozzles/inch/channel
 Resolution
 Draft Modes*1:360 X 360, 720 X360, 720 X720 dpi / Production Modes*2:1440 X1440, 2880 X 1440, 5760 X5760 dpi
 Ink Droplet Size (Minimum / Maximum)
 1.5 picoliters / 21 picoliters
 Ink Colors
 Y, M, C, K, Cl, Cl, W, W(Cl=Clear, W=White)
 Bulk Ink System TM
 Refillable 300ml tanks
 Print Speed*3
 1:10 to produce a bi-directional 8”X10”(203mmX254mm) image at 1440X720 dpi / High Speed
 3:06 to produce a bi-directional 10”X24”(254mmX610mm) image at 1440 X720 dpi /High Speed
 Absolute Positioning Accuracy & Repeatability
 ±0.0015”(.038mm)
 Print Direction
 Uni- and bi-directional
 Maximum Print Size
 10”X 24”(254mmX610mm)
 Maximum Substrate Size
 13”X 25”(330mmX635mm)
 Maximum Substrate Weight
 10 ibs. (4.5 kg). Optional heavy-duty Direct Drive Steeper Module increases maximum substrate weight to 30 ibs. (13.6 kg).
 Z-Axis (Depth/Thickness Control)
 Fully adjustable from 0”to 6”(152mm) with automatic LED sensing technology. Optional heights fully adjustable to 10”(254mm) or 15”(381mm).
 Media
 Prints to a variety of substrates*4 using the DCS Multisolve LED UV IR2 ink set, including(but not limited to) plastic, glass,  wood, ceramic, metal, etc.*5
 Control Panel
 3.5”(89mm) Color LCD Touch Screen Display
 Interface
 Hi-speed USB 2.0
 Windows Operating System
 Windows 7 (32 & 64 bit) and Windows 8 (32 & 64 bit)
 System Minmum Requirements
 CPU of >2GHz, >4GB RAM, 40 GB free hard disk space and 3 available USB 2.0 ports
 System Recommendations
 CPU of >3GHz, 8GB RAM, 100 GB free hard disk space and 4 available USB 2.0 ports
 Power Source
 100-240 VAC, 50-60 Hz, 4 A auto switching
 Operating Temperature
 60°F to 85°F(16°C to 29°C)
 Humidity
 Non-condensing 20%-80%
 Dimensions
 Depth 32.24”(819mm) X Height 25”(635mm) X Width 48”(1219mm)
 Weight
 215 Ibs. (97kg)
 Agency Listings
 CE pending
 Warranty
 Printer 2-year limited warranty
 RIP
 Color Byte RIP 9 software allows input from Photoshop®, Illustrator®, CorelDRAW® and Color Byte
 Imk and Media
 Available through Direct Color Systems and authorized dealers/distributors
1 Sustrate dependent. 2 Substrate dependent. 3 Print times may vary dependent on computer configuration. 4 All substrates should be tested for image receptivity, adhesion and durability, with fina acceptance and suitability determined by the customer. 5 Some materials may require the use of an adhesion promoter or a chemical wipe prior to printing to promote adhesion.
This data sheet is for informational purposes only. Direst Color Systems makes no warranties, expressed or implied in this summary. Specifications are subject to change without notice. This is not an offer for sale
Available through Direct Color Systems and autorized dealers / distributors
